PW-50 | 50W Intercom, P.A. and siren for armored and security vehicles

Technical specifications +
Audio and Communication +

Power

50 W

Internal sound

mono

Sound pressure level

117 dB @ 3m

Siren sounds

8 tones (5 continuous sirens, 1 manual WAIL, 2 HORN)

Electrical and Consumption +

Voltage

11.5 – 14.8 VDC

Maximum consumption

4.5 A

Auxiliary load control

10 A maximum consumption load

Installation and Structure +

Electronic unit dimensions

125 L x 109 D x 37 H mm

External speaker dimensions (50W)

113 L x 95 D x 133 H mm

External speaker weight

1.2 kg

Internal speaker dimensions

80 L x 45 D x 73 H mm

External microphones (IP65)

Option 1 — hidden mic: 11 L x 17 D x 11 H mm; Option 2 — heavy-duty mic: 19 L x 19 D x 21 H mm; both with 3.5 m cable

Control keypad

Option 1 — SUV: 54 L x 8 D x 25 H mm; Option 2 — Tactical: 108 L x 56 D x 40 H mm

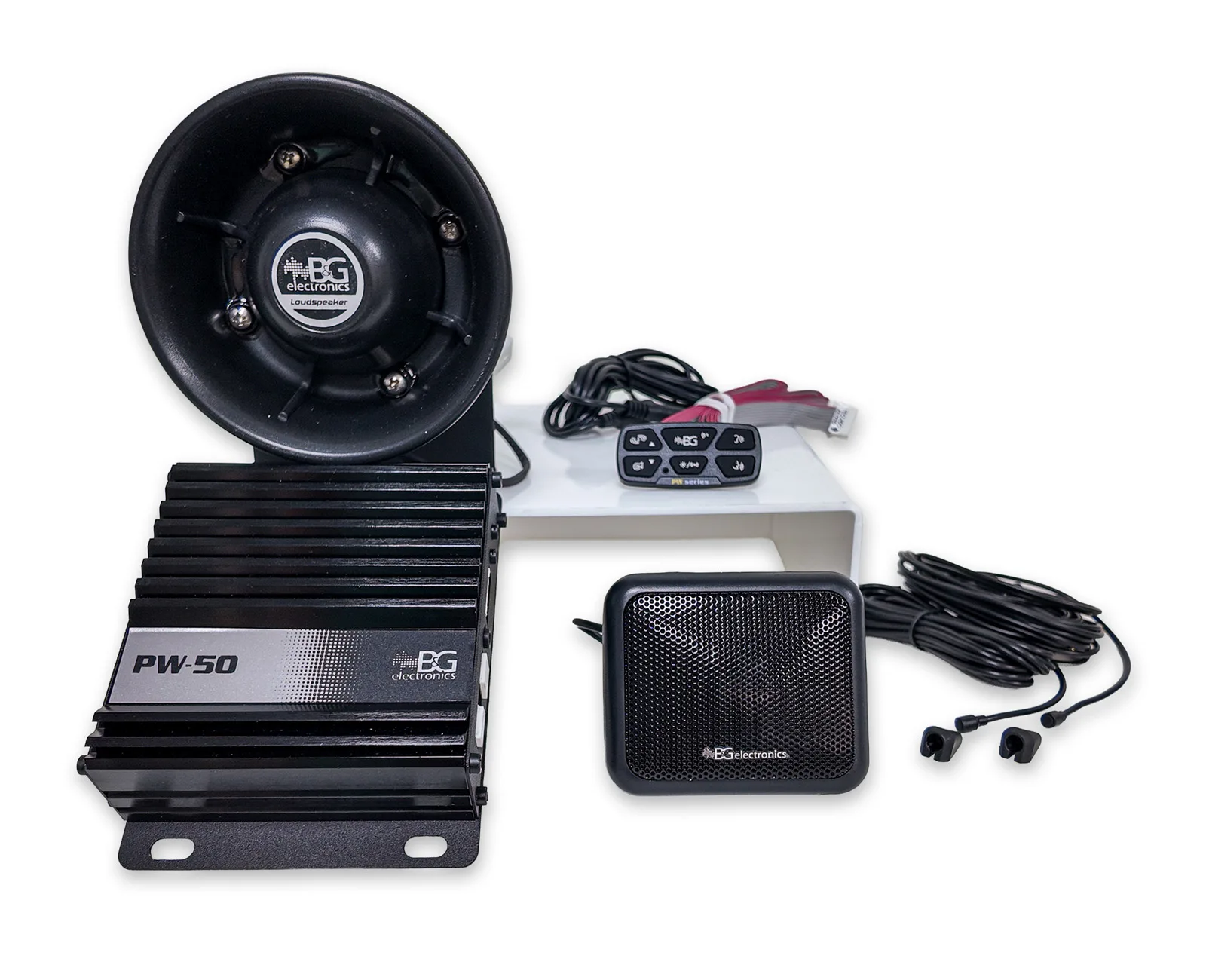

Included Components +

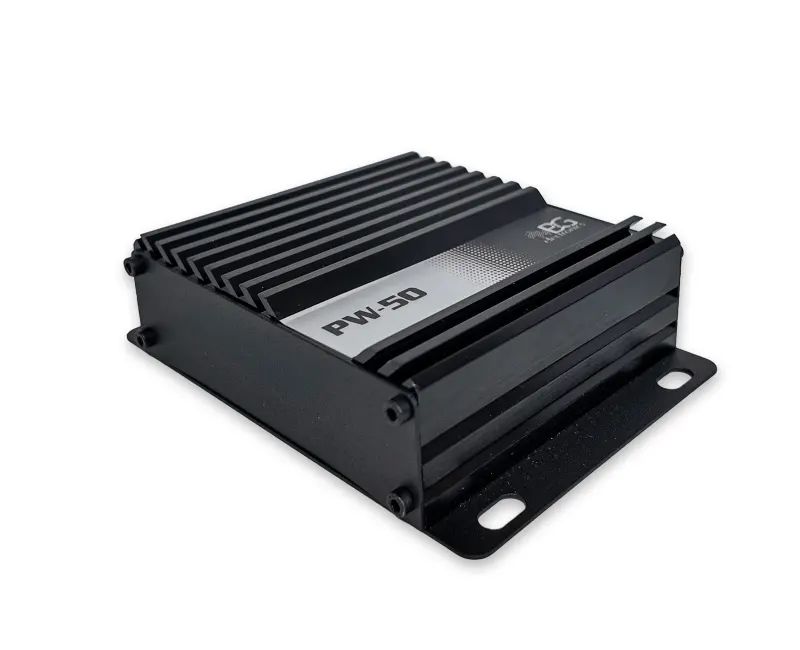

Electronic unit

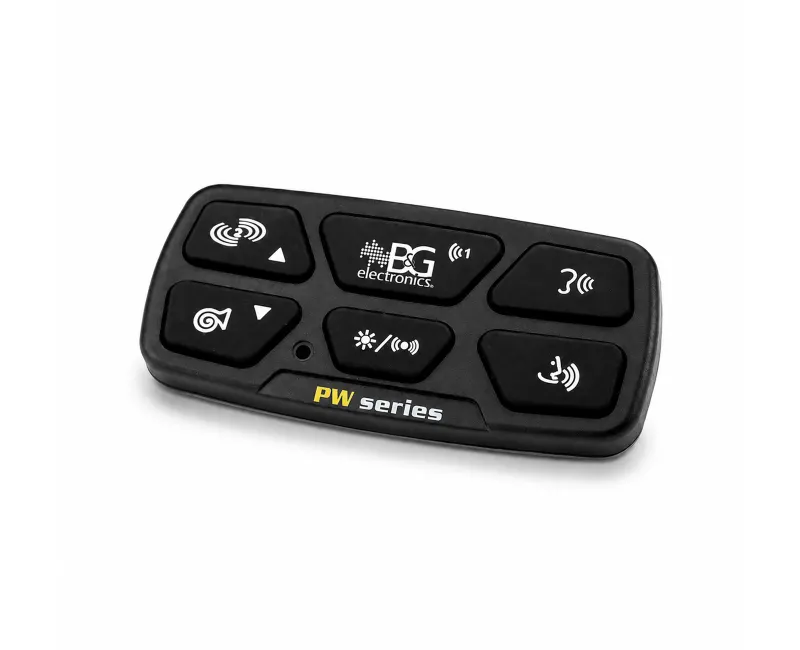

Digital keypad with built-in microphone

50W speaker

External microphone

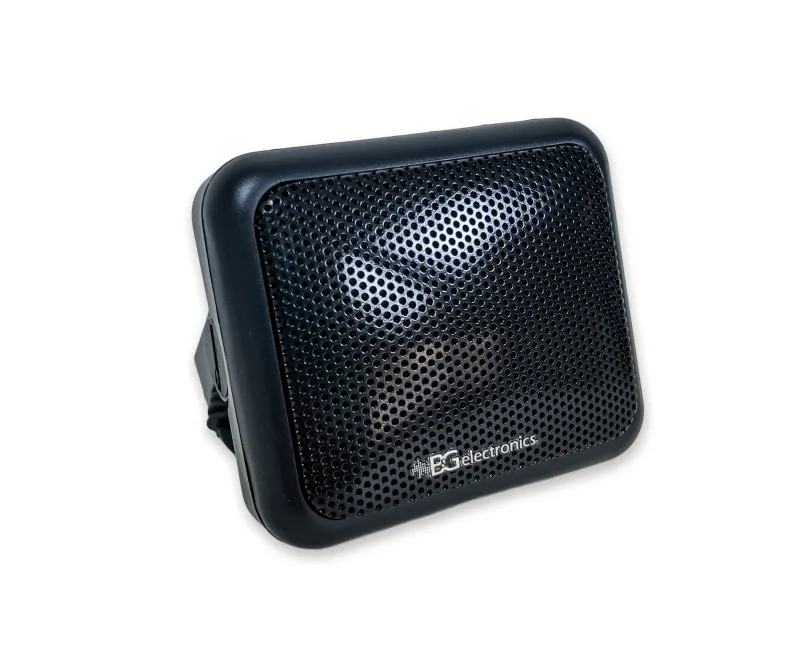

Internal speaker

Keyboard harness

Speaker output cable

Speaker harness with auxiliary load

Documentation and Licenses +

Communicate, stay alert and respond, without giving up your protection

If you operate or manage a fleet of armored vehicles, you need constant two-way communication with the outside without compromising the safety of your occupants. The PW-50 allows you to transmit voice instructions or alert signals while keeping your vehicle’s physical barriers completely closed.

What everyday problem does it solve?

Interacting in dense or high-risk traffic situations from an armored vehicle should not force you to break physical isolation. The PW-50 is designed so you do not have to.

  • Create escape routes using its 8 official siren tones, including 5 continuous sounds (such as Phaser and Yelp) and manual tones.
  • Your equipment shuts down automatically after 5 minutes of inactivity or if the voltage drops critically, thanks to ASD (Automatic Shut Down / Automatic shutdown) technology, which protects your battery without requiring you to disconnect anything manually.
  • If you open a window or door while speaking, AFC (Automatic Feedback Control) technology filters noise so the conversation remains clear.
  • The external volume adjusts automatically based on how isolated your cabin is, with VAA (Volume Auto Adjustment) technology.
  • The equipment is not invasive to the vehicle's electrical system; it only requires a connection to the battery.

The result is an efficient communication and response system that expands the driver's operational control, with greater reaction capacity and tactical security, ensuring that the armored vehicle fulfills its purpose of protecting lives at all times without becoming isolated from its surroundings.

Applications

Armoring and Coachbuilding Companies Armoring and Coachbuilding Companies Dealers Dealers Patrol and Tactical Vehicles Patrol and Tactical Vehicles Diplomatic Security Vehicles and PEP Users Diplomatic Security Vehicles and PEP Users
