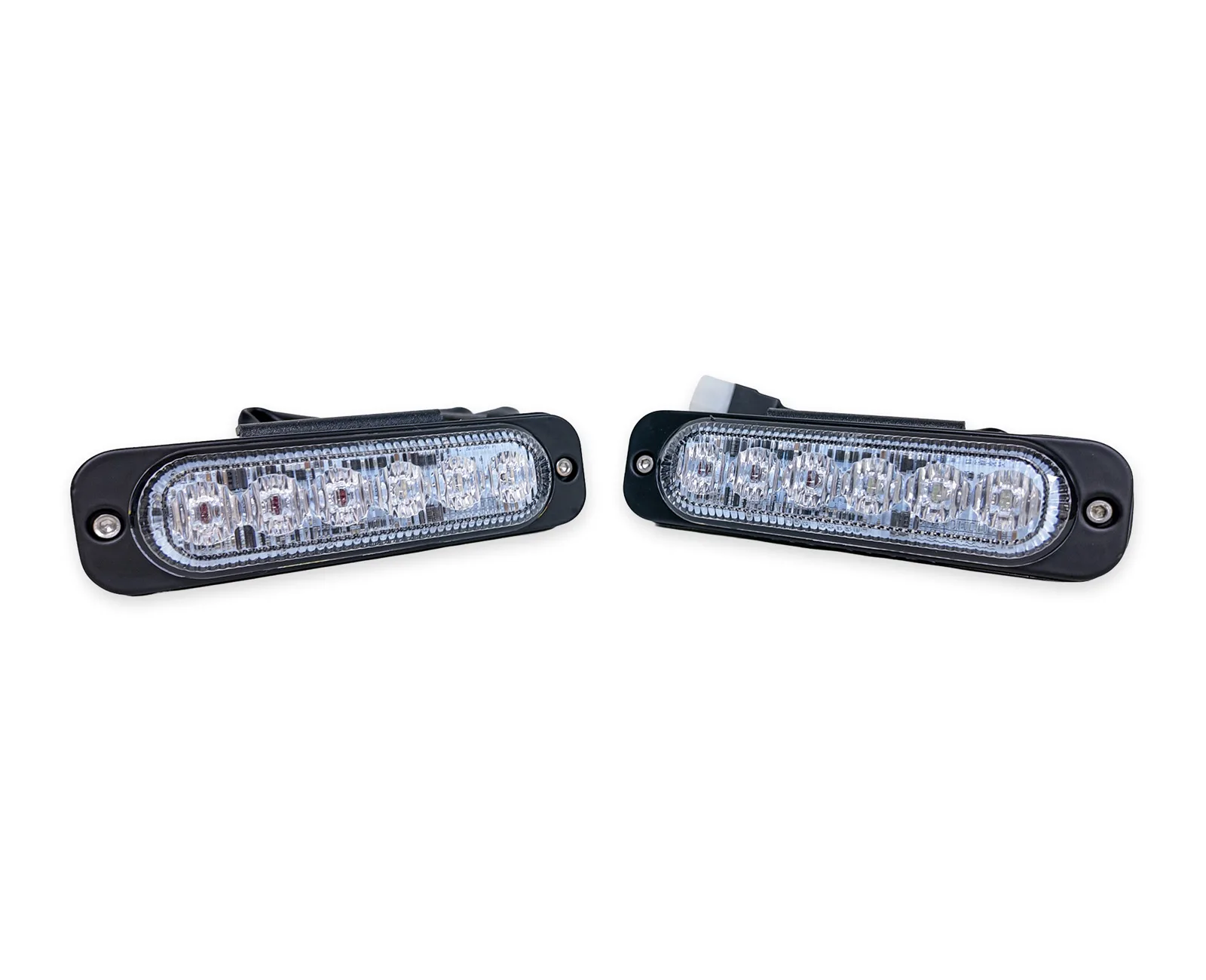

Traffic Lamp | Third-generation two-color LED lamp for official use
Technical specifications +
Optics and Signaling +
Beam angle
180°
Flash frequency
Up to 600 FPM
Light patterns
10 selectable flash sequences
Certification
SAE J595:2005 standard
Available colors
Blue-Red, Blue-Blue, White-White
Electrical and Consumption +
Power
10 – 30V DC
Power
18W (per lamp)
Power consumption
1.5A @ 12V (per lamp)
Installation and Structure +
Dimensions
120 L x 17 D x 32 H mm (per lamp)
Integration with other product lines +
PW-50 to PW-250
It activates together with the siren via the auxiliary output of the digital keypad (AUX CARGA configuration)
PDS-TOUCH
It is activated, turned off, and monitored directly from the touchscreen, connected to the PMAC or PDS 8x8 modules
180° visibility for the vehicle, regardless of which side they see it from
In an emergency or official operation, being seen in time can make the difference between clearing traffic or not. The Traffic Lamp complements the B&G intercom system with approved visual signaling, designed to be seen from any angle and withstand continuous outdoor use.
What everyday problem does it solve?
A warning light with a limited visibility angle or that cannot withstand constant outdoor use leaves you exposed precisely when being seen is most important. The Traffic Lamp is designed to prevent that.
- With a 180° dispersion angle, the vehicle is visible from multiple sides, not just from the front.
- Choose from 10 flash sequences, up to 600 FPM (flashes per minute), according to the operation’s needs.
- Complies with the SAE J595:2005 official vehicle lighting technical standard for safety vehicles.
- Withstands continuous outdoor use, making it ideal for exposed installations on the exterior of the vehicle.
- It turns on automatically together with the siren in PW systems (via the AUX CARGA auxiliary output controlled from the keypad), or it can be controlled directly from the PDS-TOUCH touchscreen.
- Available in three regulatory color configurations: Blue-Red, Blue-Blue, and White-White.
The result is approved visual signaling integrated into the same system that already controls communications and sirens — whether you operate it yourself or equip the vehicle you armor or deliver.
