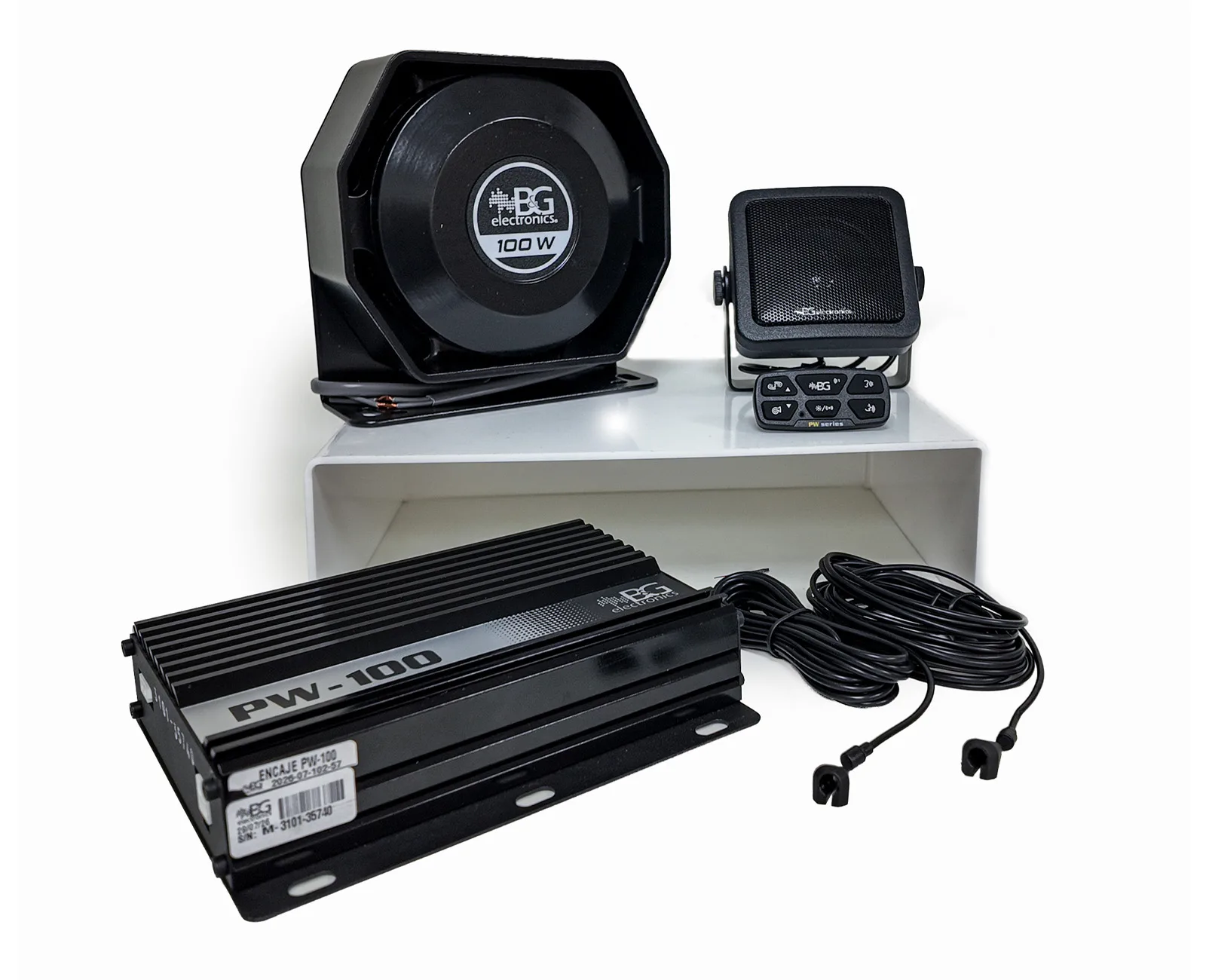

PW-100 | 100W Extended-Range Intercom, P.A. and Siren for Armored Vehicles

Technical specifications +
Audio and Communication +

Power

100 W

Internal sound

Mono

Sound pressure level

120 dB @ 3m

Siren sounds

8 tones — 5 continuous (PHASER, YELP, WAIL, Hi-Lo, CHIRP), 1 manual WAIL, 2 HORN (B&G, Standard)

Electrical and Consumption +

Voltage

11.5 – 14.8 VDC

Maximum consumption

8.5 A

Auxiliary load control

Yes, up to 10 A

Installation and Structure +

Electronic unit dimensions

192 L x 109 D x 37 H mm

External speaker dimensions (100W)

145 L x 54 D x 142 H mm

External speaker weight

2.98 kg

Internal speaker dimensions

80 L x 45 D x 73 H mm

External microphones (IP65)

Option 1 — concealed: 11 L x 17 D x 11 H mm, 3.5 m cable; Option 2 — heavy-duty: 19 L x 19 D x 21 H mm, 3.5 m cable

Control keypad

SUV option — 54 L x 8 D x 25 H mm; Tactical option — 108 L x 56 D x 40 H mm

Included Components +

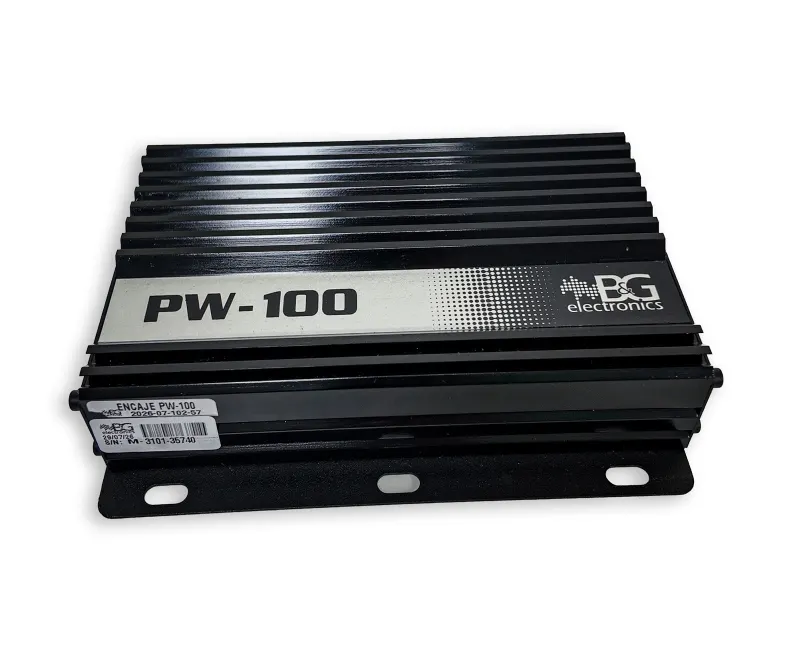

Electronic unit

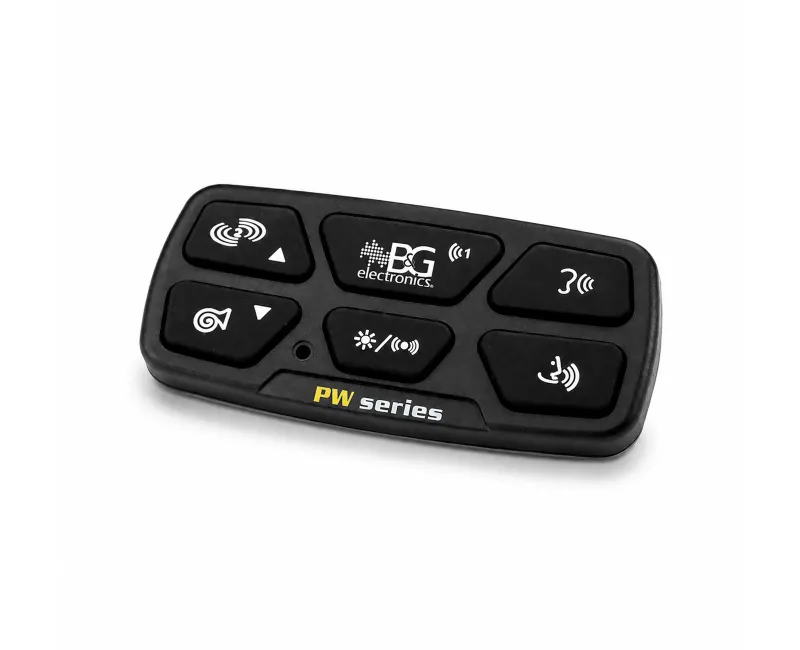

Digital keypad with built-in microphone

100W speaker

External microphone (depending on selected option)

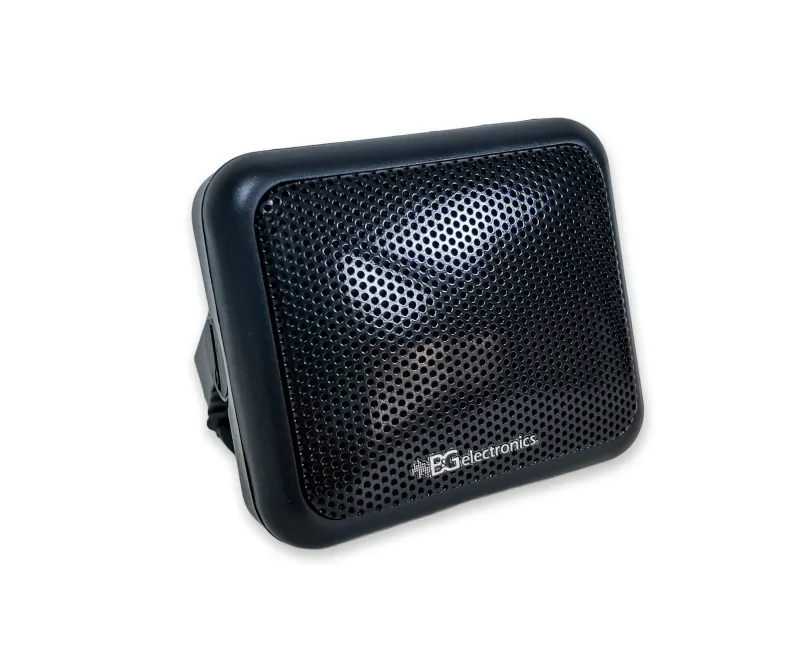

Internal speaker

Keyboard harness

Speaker output cable

Speaker harness with auxiliary load

Documentation and Licenses +

More power so your voice reaches farther, without opening the door.

When your armored vehicle operation requires reaching farther than an entry-level vehicle, the PW-100 scales your capabilities and doubles the power so your instructions and alerts dominate heavy traffic, integrating with the same control interface you already know.

What everyday problem does it solve?

Being heard from a larger armored vehicle, in environments with higher ambient noise or greater distance, requires greater-than-standard volume to prevent the message from becoming distorted or getting lost.

  • With twice the acoustic impact of the base equipment, greater volume and clarity are achieved in noisier environments, switching between high power to clear a path through traffic and low power to speak directly with someone near your vehicle.
  • You retain all the technologies in the line (AFC noise suppression, VAA auto-adjustment, and ASD automatic shutdown), applying their calibration to a much more powerful sound range.
  • Choose between an SUV-style keypad or a tactical keypad, depending on the type of vehicle where you install it.
  • It is compatible with hybrid and electric vehicles, without interfering with the electrical system or your customer's factory warranty

The result is greater communication range for vehicles and environments that demand more than entry-level equipment — whether you operate it or integrate it into the vehicle you armor or deliver.

Applications

Armoring and Coachbuilding Companies Armoring and Coachbuilding Companies Dealers Dealers Patrol and Tactical Vehicles Patrol and Tactical Vehicles Diplomatic Security Vehicles and PEP Users Diplomatic Security Vehicles and PEP Users

Compatible accessories

Accessories designed to complement this product
