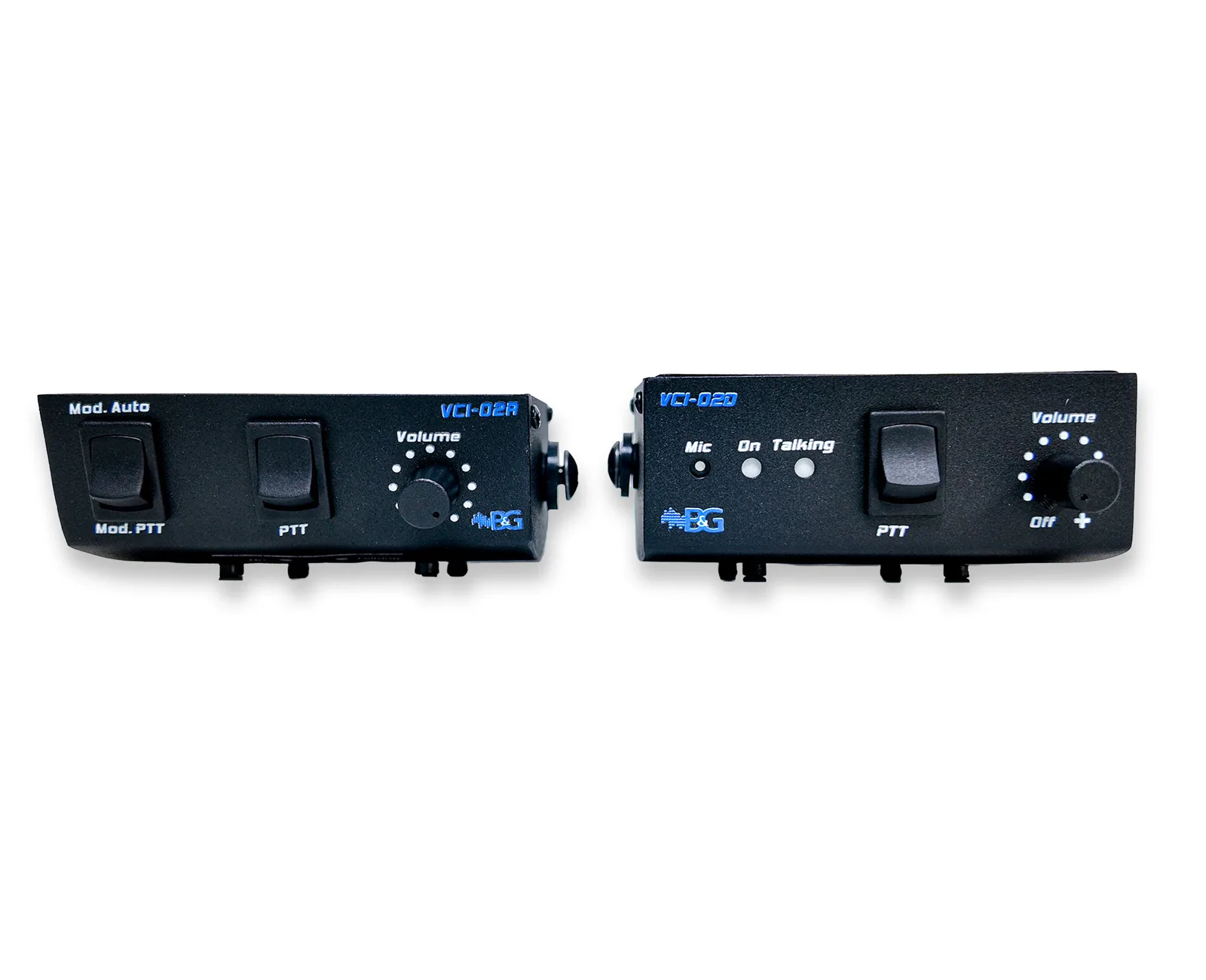

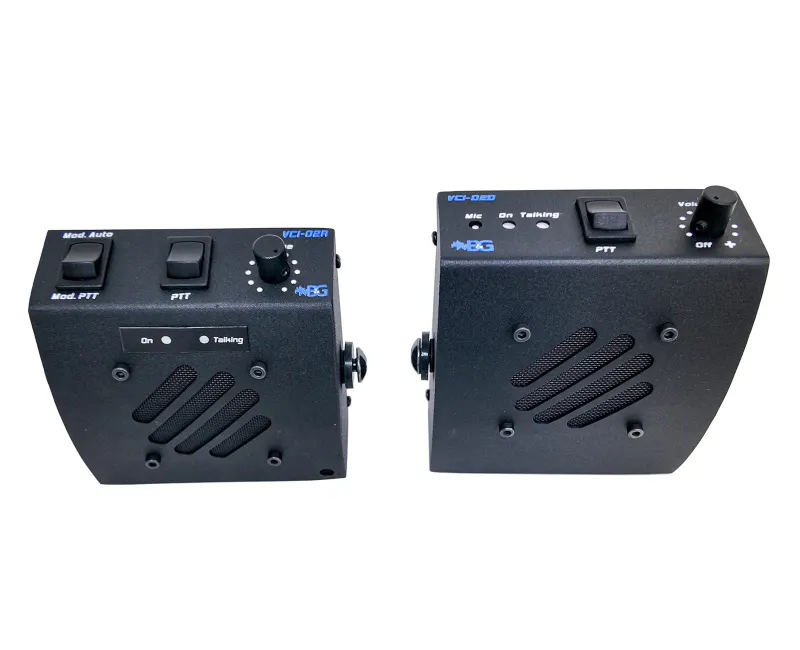

VCI-02 | Intercom Between Cabins

Technical specifications +
Audio and Communication +

Communication type

Half Duplex

Amplification

High fidelity, optimized for operation in enclosed cabins

Front cabin module controls (VCI-02D)

PTT button; rotary volume control with integrated power on/off (ON/OFF); built-in high-performance microphone; power and activity LED indicator

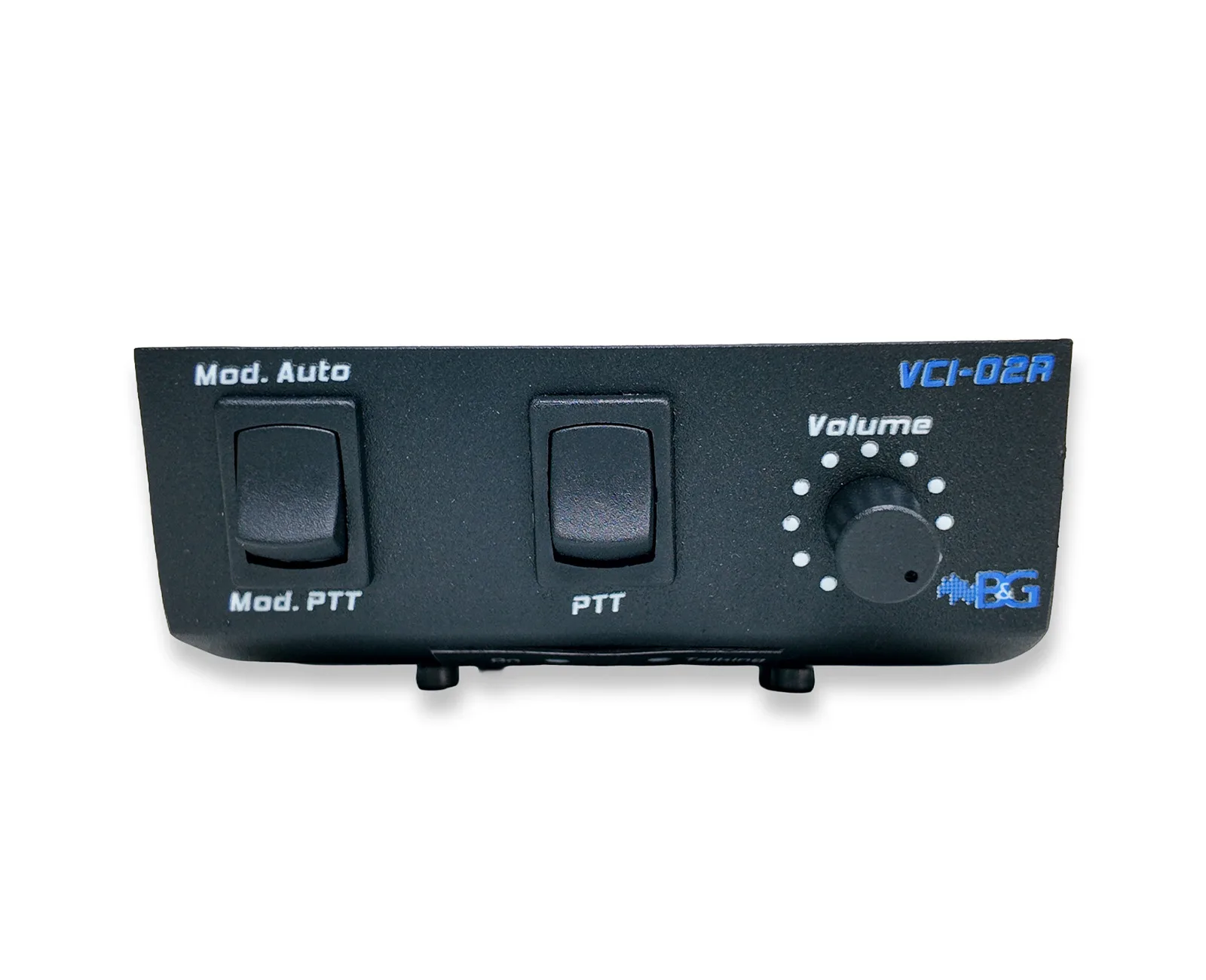

Rear cabin module controls (VCI-02R)

PTT button; rotary volume control; built-in microphone; sliding mode selector (Automatic Mode / PTT Mode); power and activity LED indicator

Electrical and Consumption +

Supply voltage

11.5 – 24.5 VDC

Power consumption off (OFF)

0 mA

Operating consumption

Optimized for continuous operation without excessive battery drain

Installation and Structure +

Driver cabin module dimensions (VCI-02D)

107 L x 48 D x 108 H mm

Rear cabin module dimensions (VCI-02R)

108 L x 48 D x 96 H mm

Connectivity

Interconnection via standardized cable, up to a maximum length of 20 meters between modules; the power cable connects only from the front module VCI-02D

Design

Robust for heavy-duty operation, designed exclusively for the vehicle interior

Included Components +

1 VCI-02D forward cabin module

1 VCI-02R rear cabin module

1 interconnection cable

1 power supply harness (battery)

Mounting brackets for both modules

Documentation and Licenses +

Communicate with your crew without interrupting operation

If you operate or equip cash-in-transit vehicles, ambulances, tactical vehicles, or any double-cab vehicle, a lack of smooth communication delays operations. The VCI-02 connects both cabs (driver module and rear module) to streamline communication without interrupting the activity in progress.

What everyday problem does it solve?

When the driver and crew are separated by a cab, not having a direct communication channel forces you to stop the vehicle or raise your voice to be heard. The VCI-02 is designed to make neither necessary.

  • The driver cab module has a PTT (Push To Talk) button that is pressed only when communication with the crew is necessary.
  • The rear cab module is powered from the front module: the battery only needs to be connected at one point.
  • Choose how the rear crew communicates: in Automatic Mode, the channel remains permanently open for hands-free communication, or in PTT (Push To Talk) Mode, they press the button only when they need to speak, for greater privacy.
  • The driver turns the entire system on and off from a single control on the front module.
  • The indicator lights on each module allow you to quickly verify the power and communication channel status (On / Talking).
  • Robust design for heavy-duty use, intended exclusively for vehicle interiors.

The result is efficient and clear communication among crew members, improving operational productivity with a simple installation.

Applications

Armoring and Coachbuilding Companies Armoring and Coachbuilding Companies Firefighters Firefighters Ambulances Ambulances Civil Defense Civil Defense Valuables Transport Valuables Transport Tactical Vehicles and SUVs Tactical Vehicles and SUVs
