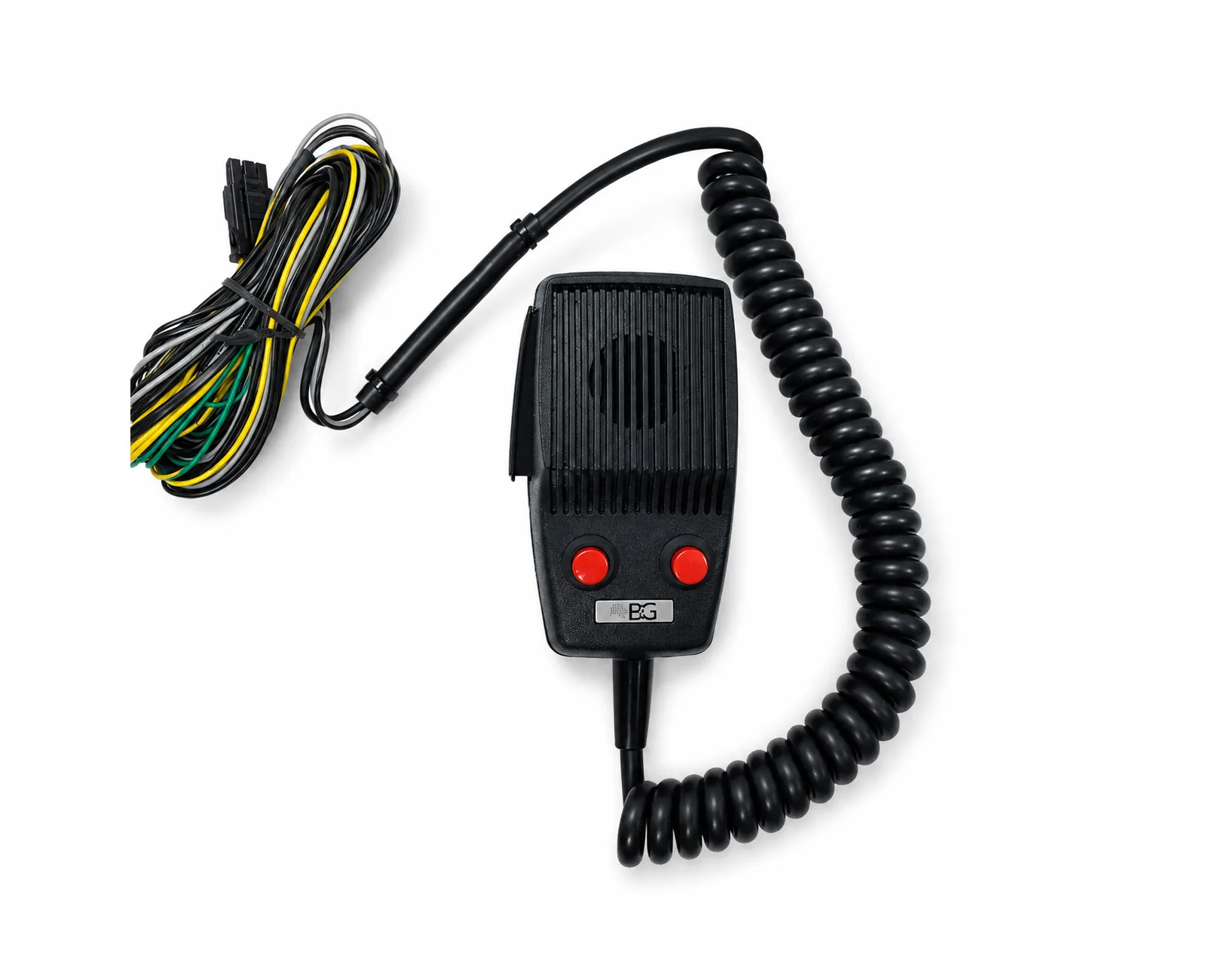

EQ-100A Handheld Microphone | Factory handheld microphone for operating sirens and public address on EQ-100A
Technical specifications +
Controls +
Front buttons
SIREN (activation and tone change for continuous siren)
HORN (manual horn)
Side button
PTT (public address)
Dimensions +
60 x 50 x 101 mm
Wiring and connections +
Harness with 2.5 mm plug for the internal microphone
6-pin quick function connector to the electronic unit
Terminal 1 (Gray): handheld microphone control
Terminal 2 (Black)
ground/GND
Terminal 3 (Yellow)
horn logic input (grounding for external HORN)
Terminal 4 (Brown)
handheld microphone control
Terminal 5 (Green)
AUX (500mA negative output for light relay)
Terminal 6
not connected
The main control of your EQ-100A, right in your hand
On the EQ-100A, the handheld microphone is not an additional accessory — it is the peripheral from which you operate the entire system. With it, you control the siren, HORN, and voice paging without relying on another control point in your emergency vehicle.
What everyday problem does it solve?
An emergency system that requires operation from several different points slows your reaction time. The EQ-100A Handheld Microphone is designed to let you control everything from a single location.
- Activate and change your continuous siren tones directly from the SIREN button, without touching the electronic unit.
- Operate the manual HORN from its own front button, immediately.
- Speak to the outside while holding down the side PTT button.
The result is complete control of your emergency system concentrated in a single peripheral, included from the factory.
