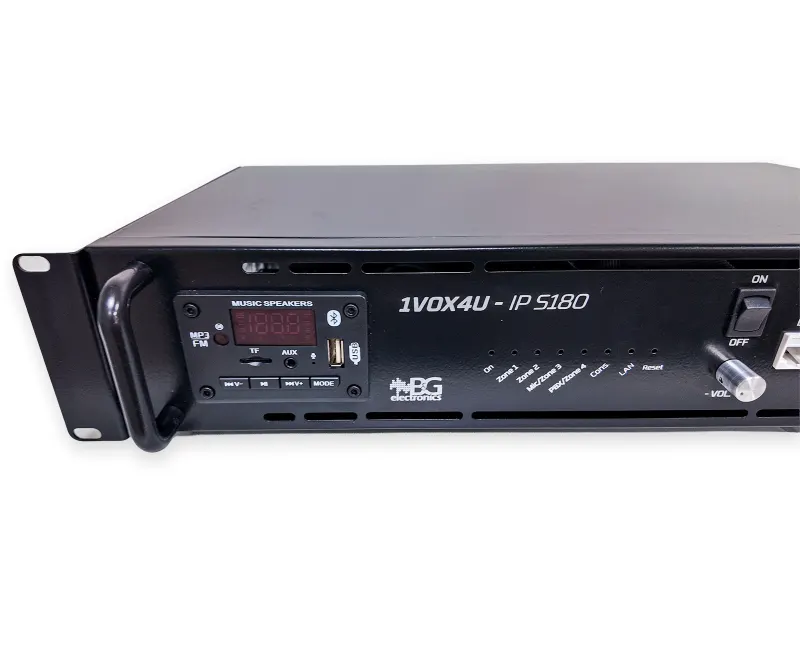

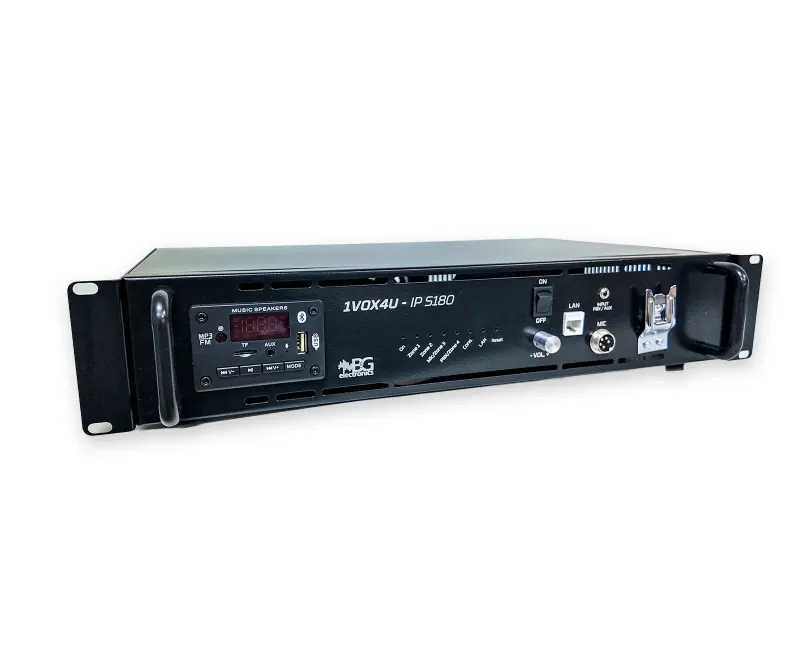

1VOX-4U S180 | 180W zoned IP audio distribution system

Technical specifications +
Installation and Structure +

Installation

Desktop, wall or standard 19" rack

Dimensions

485 L x 305 D x 95 H mm

Weight

5.2 kg

Audio and Communication +

Total power

180W RMS

Zone 1

Amplified, line output with three options (8Ω / 70V / 100V)

Zone 2

Pre-amplified (line-out for headphones or external amplifier)

Note

The combination of connected speakers must be less than or equal to 180W

Connectivity and App +

Network connection

1 RJ-45 LAN port, operating speed 100 Mbps / 1 Gbps

Audio inputs

Handheld or zone microphone; auxiliary input or analog PBX (3.5 mm); USB 2.0 Type A storage; integrated Bluetooth and FM Radio

Software

Virtual Microphone (speak from your own computer, without additional hardware)

Telephone integration

Connection to IP telephone systems for making announcements from any extension

Control and Interface +

Input for alert button (SOS)

Input for zone microphone button

Dry contact output for activation of external devices

Electrical and Consumption +

Power

110\/220 VAC @ 50\/60 Hz

Documentation and Licenses +

IP zone communication for large spaces requiring high power and centralized control

If your organization needs clear, powerful, and controlled communication in large or mixed spaces, the S180 allows you to broadcast messages, background music, and targeted alerts from a single point, ensuring that each message reaches exactly the right zone.

What everyday problem does it solve?

When your operation depends on improvised paging systems or speakers without centralized control, every message becomes a source of error. The S180 is designed to make that no longer a problem.

  • Send messages only to the zones you need, or to your entire organization at once, thanks to its scalable system ranging from 1 zone to multiple zones.
  • Schedule announcements and informational messages for multiple locations from a single command point, supported by its internal storage capacity.
  • Automate alert messages, shift changes, or prerecorded announcements centrally.
  • Make announcements from your own computer with Virtual Microphone software, without additional hardware.
  • Connect multiple audio sources: USB, Bluetooth, FM radio, and auxiliary inputs.
  • Connect to IP telephone systems to make announcements from any extension of your system.

The result is centralized and automated communication that optimizes activity organization, improves operational safety, and makes it easier to efficiently locate your staff. Because the system is sized according to the number of zones and locations in your operation, the first step is to schedule a project assessment.

Applications

Hospitals, Clinics and Healthcare Institutions Hospitals, Clinics and Healthcare Institutions Police Stations Police Stations Stadiums, Arenas and Mass Events Stadiums, Arenas and Mass Events Gyms and Sports Centers Gyms and Sports Centers Schools Schools Call Centers Call Centers Administrative Offices Administrative Offices Industrial Plants Industrial Plants Retail and Commerce Retail and Commerce
