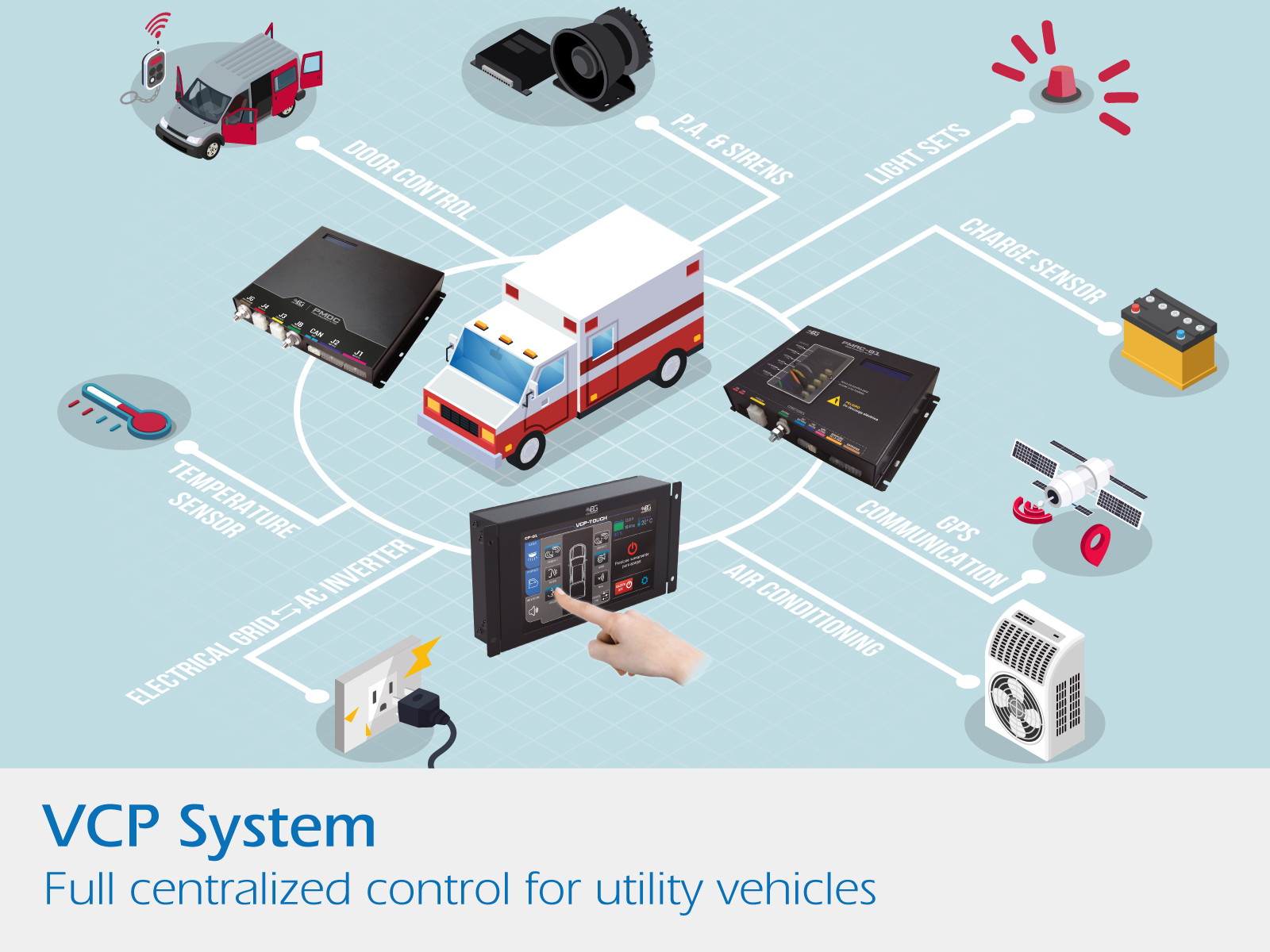

VCP SYSTEM (Vehicle Control Power)

Modular control system, facilitates the integration of additional devices into the vehicle’s electrical system through the use of BUS CAN modules.

Allows to control the activation status of all the devices connected to the system from one or more touchscreens.

The system is customizable to suit customer needs in terms of the number of modules and the graphic interface of the touchscreen.

Applications::Ambulances, cash-in-transit, tactical vehicles, buses and police vehicles.

BENEFITS

User

* Robust design, recommended for utility vehicles.

* Easy handling.

* Real-time information management.

* User friendly interface.

BENEFITS

Vehicle manufacturer

* Solution that optimizes the electrical system.

* Substantially reduces wiring.

* Simplifies after-sales service and reduces warranty costs.

* Graphical interface customizable to customer needs.

* Operates through a BUS CAN type communication protocol.

* Connects all peripheral equipment to the system. Custom made, with lengths and specifications adapted to customer requirements.

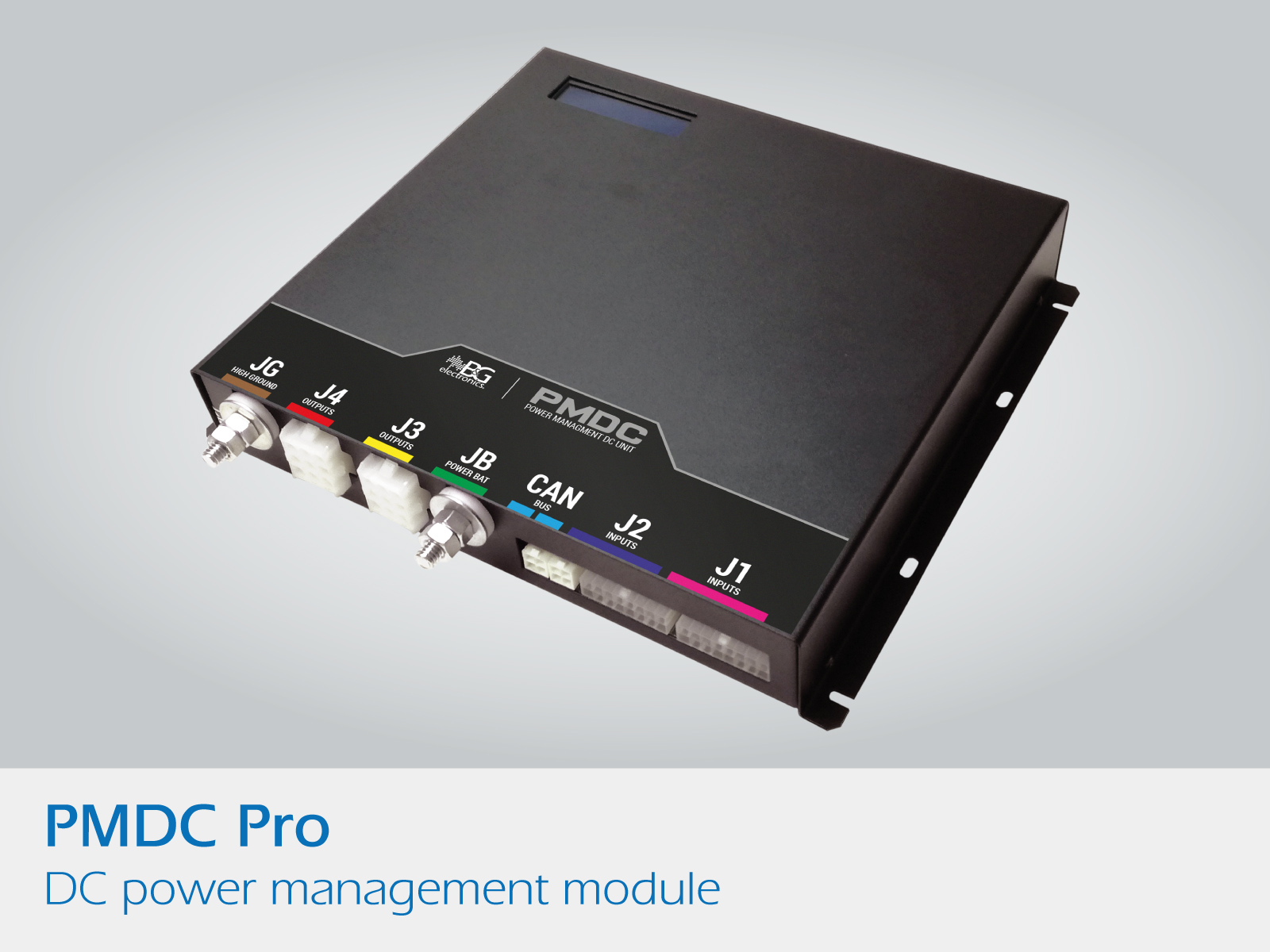

MODULE PMDC Pro

DC power management module

* 18 DC 10A outputs and 29 inputs to control the activation status of different devices connected to the system.

* Receives and executes commands entered on the touchscreen.

* Integrated electronic fuses to protect the equipment.

* Internal battery status sensor.

* LCD on-screen notifications: Display fuse failure and input / output status.

* Communication via BUS CAN protocol.

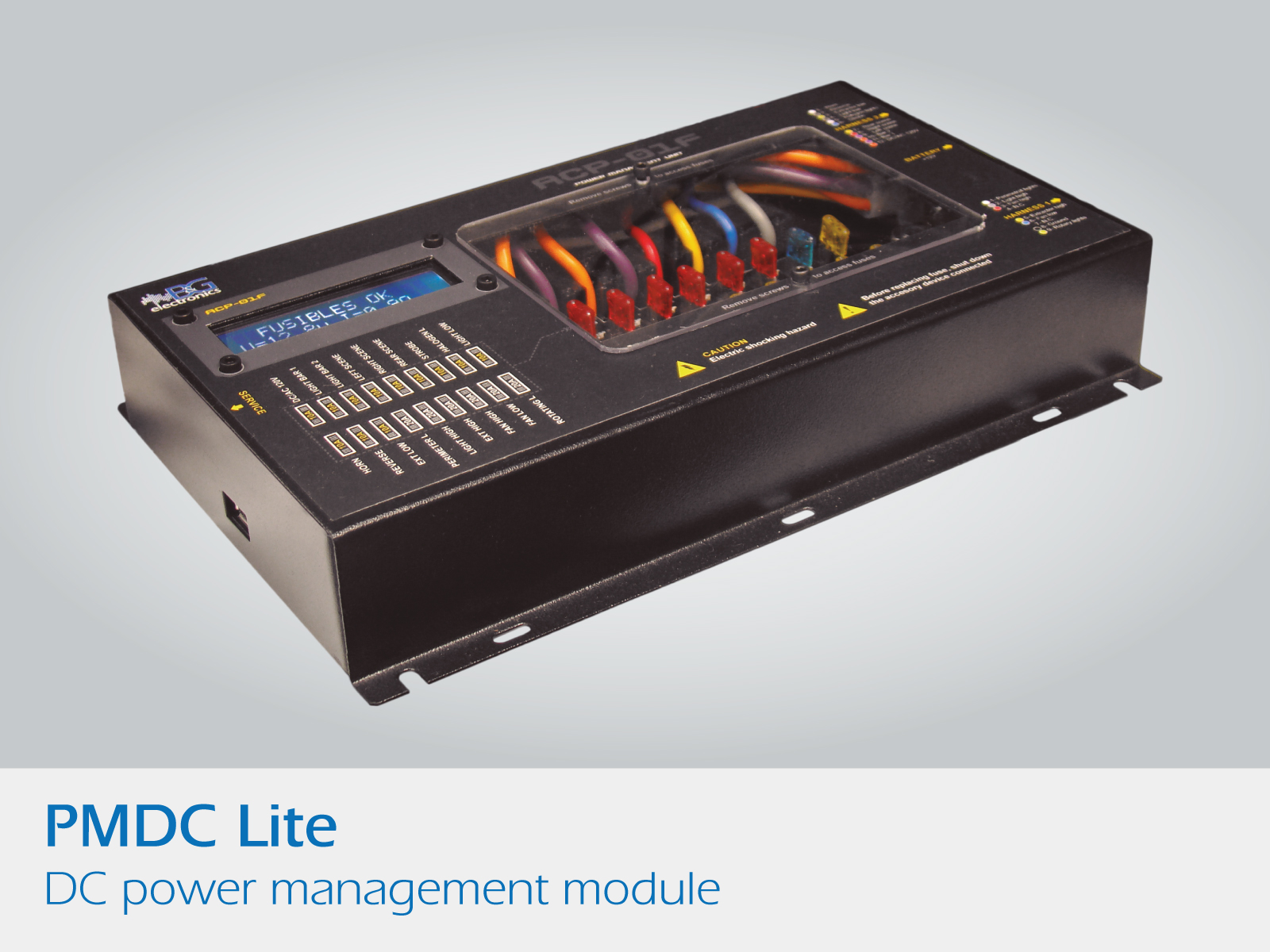

MODULE PMDC Lite

DC power management module

* 6 DC 20A 12V outputs and 12 DC 10A 12V outputs to control the activation status of different devices connected to the system.

* Receives and executes commands entered on the touchscreen.

* Automotive fuses to protect the equipment.

* Fuse failure notifications through LED indicators and LCD screen.

* Internal battery status sensor.

* Communication via BUS CAN protocol.

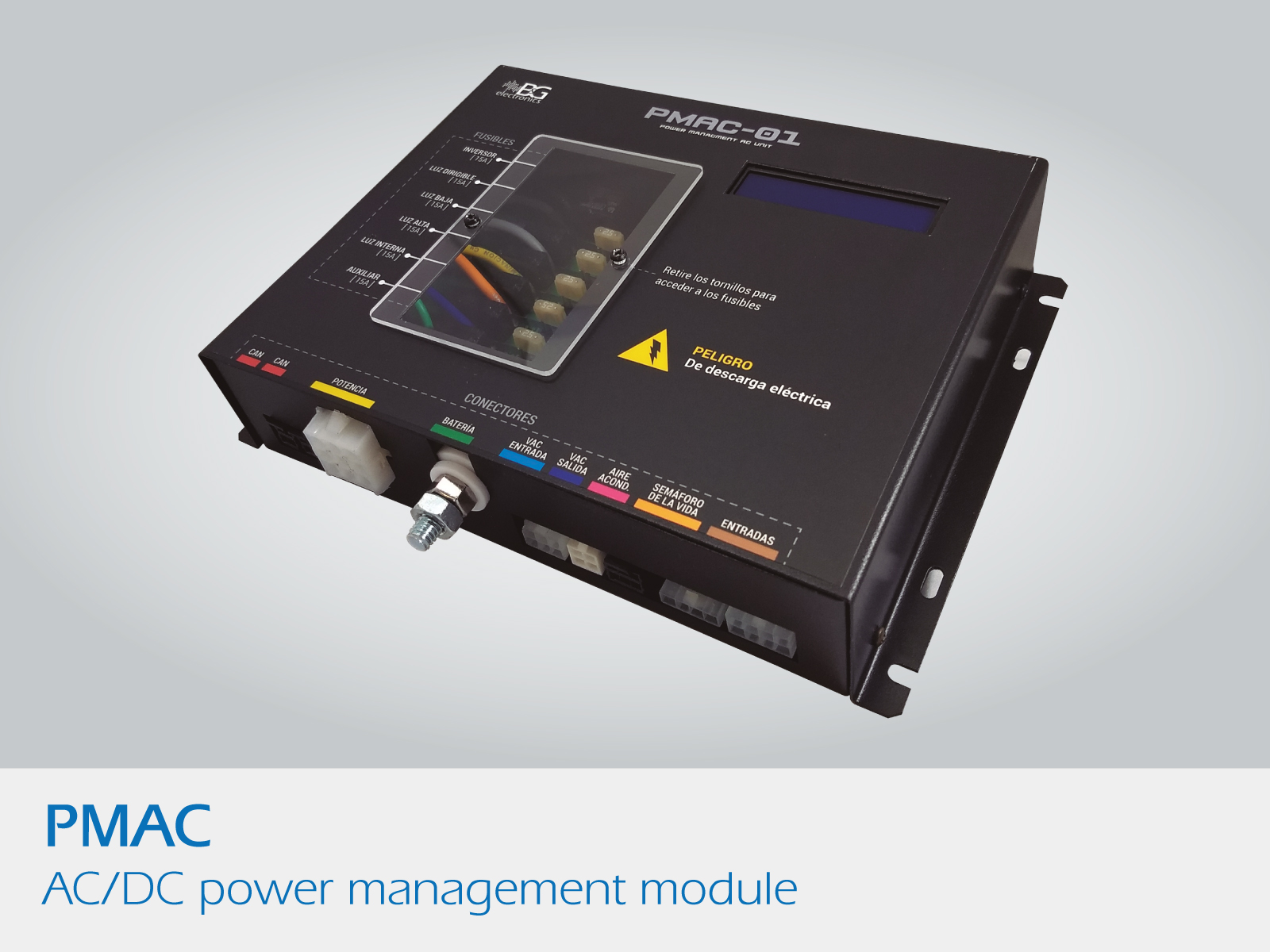

MODULE PMAC

AC/DC power management module

* 6 DC and 3 AC inputs to make decisions on the touchscreen.

* 6 DC 12V inputs with fuses to control the activation status of different devices connected to the system.

* 2 AC 110/240 outputs to control contactors. Allow switching the power supply between the urban grid and the AC inverter.

* 2 Independent dry contact outputs normally open and 3 dry contact outputs with common connector normally open.

* Automotive fuses to protect the equipment.

* Fuse failure notifications through LED indicators and LCD screen.

* Internal battery status sensor.

* Communication via BUS CAN protocol.

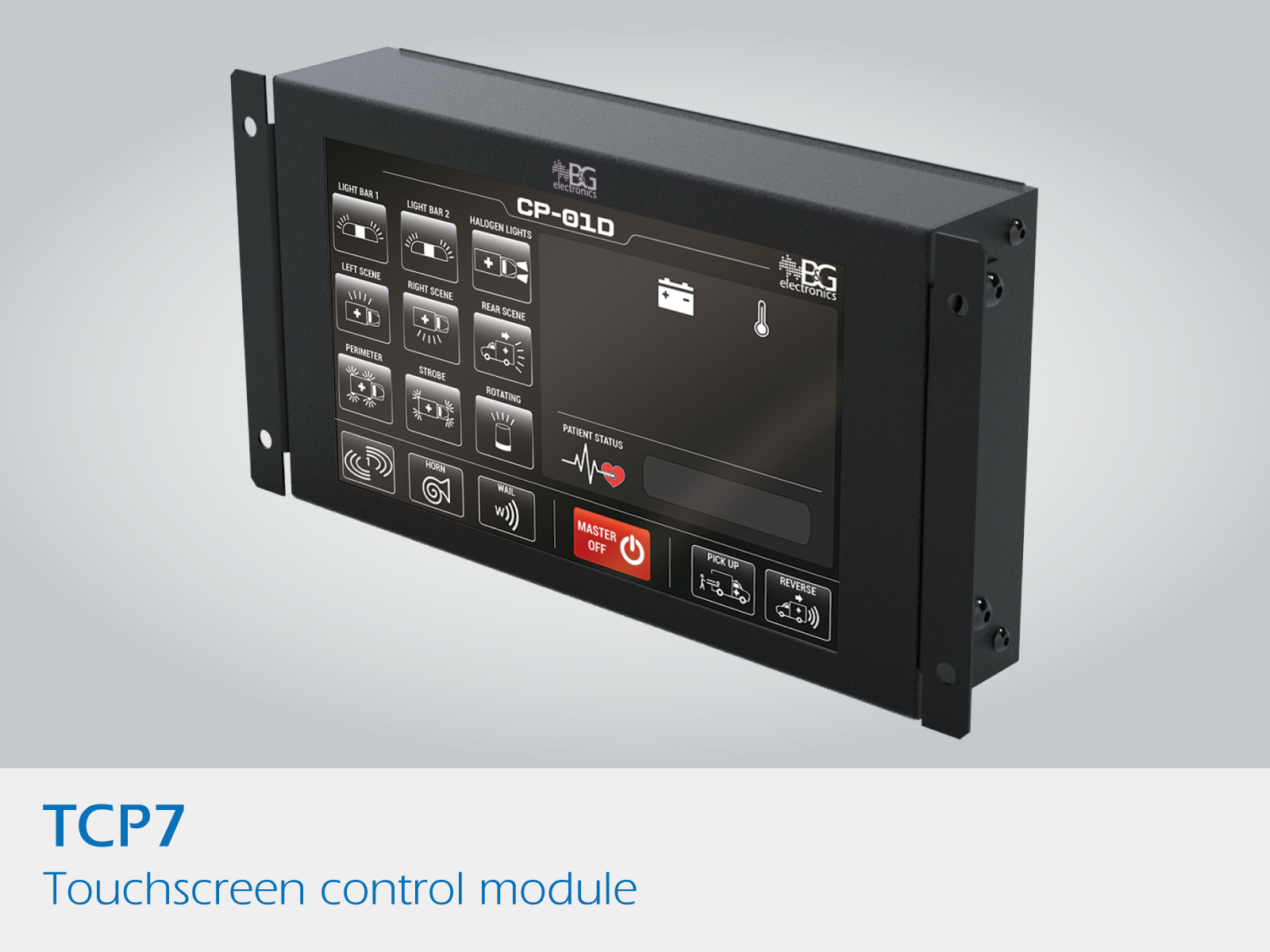

MODULE TCP7

Touch screen control module

Enables control of devices connected to the power management modules. Customizable graphic interface, allows to adapt the product to customer specifications.

* 7” Color resistive touchscreen.

* 6 Logic inputs.

* 4 DC outputs.

* Integrated electronic fuses to protect the equipment.

* External temperature sensor (optional accessory).

* Real-time notifications of fuse failure, battery status and temperature.

* Communication via BUS CAN protocol.

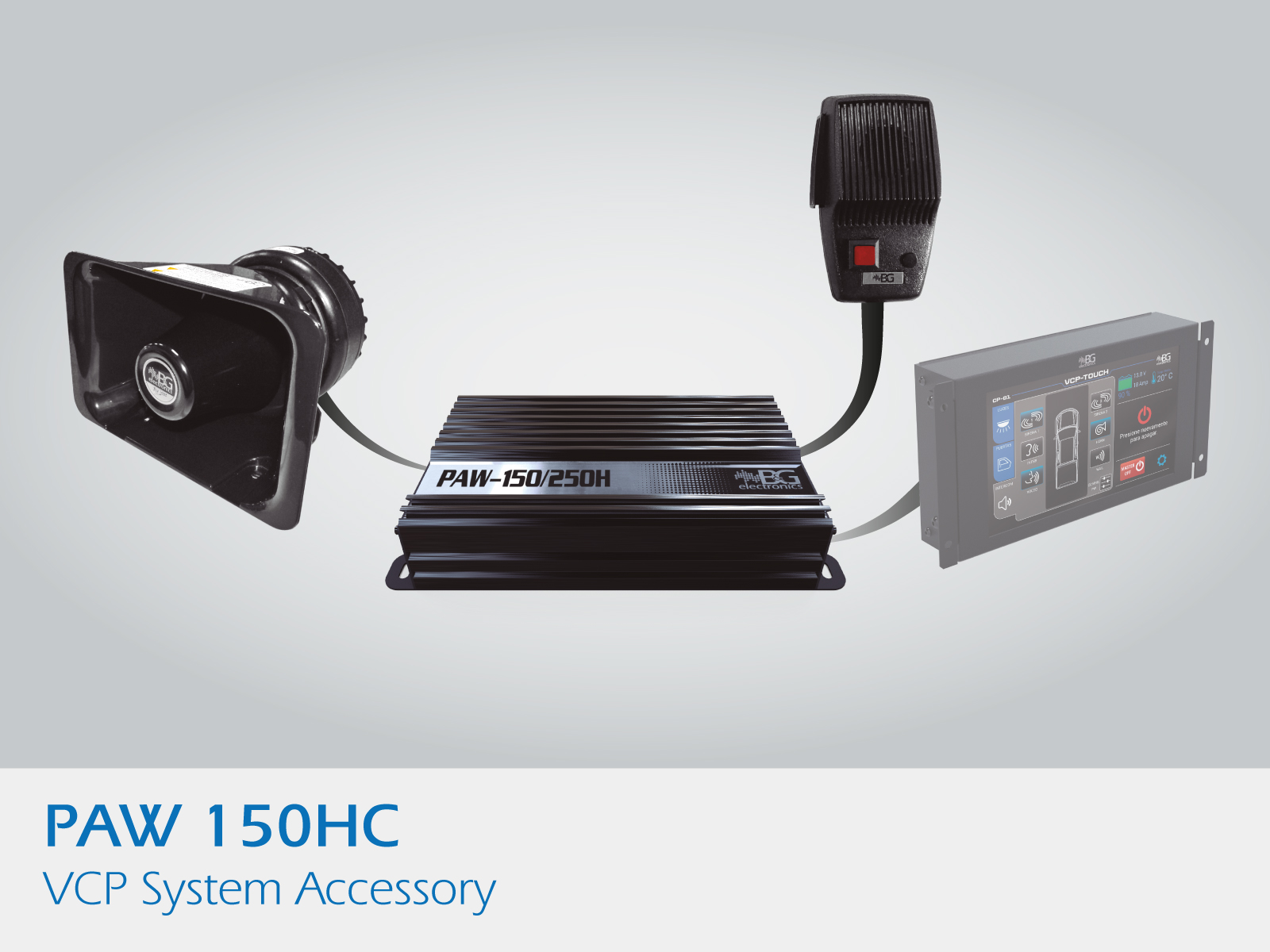

ACCESSORY PAW150HC

P.A. and siren system with handheld microphone for CAN communication.

* One-way communication.

* Handheld microphone with handling of sirens, P.A. and horn.

* 7 Official siren tones:
• 4 Selectable continuous sirens (Hi-Lo, PHASER, YELP, WAIL)
• 1 Manual WAIL
• 2 Selectable manual horn tones (B&G HORN, Standard HORN)

* ASD (Automatic Shut Down) Technology: Smart electronic auto shutdown to prevent battery discharge. Eliminates the need to connect the equipment to accessories.

* Controlled through the TCP7 touchscreen

* Communication via BUS CAN protocol.

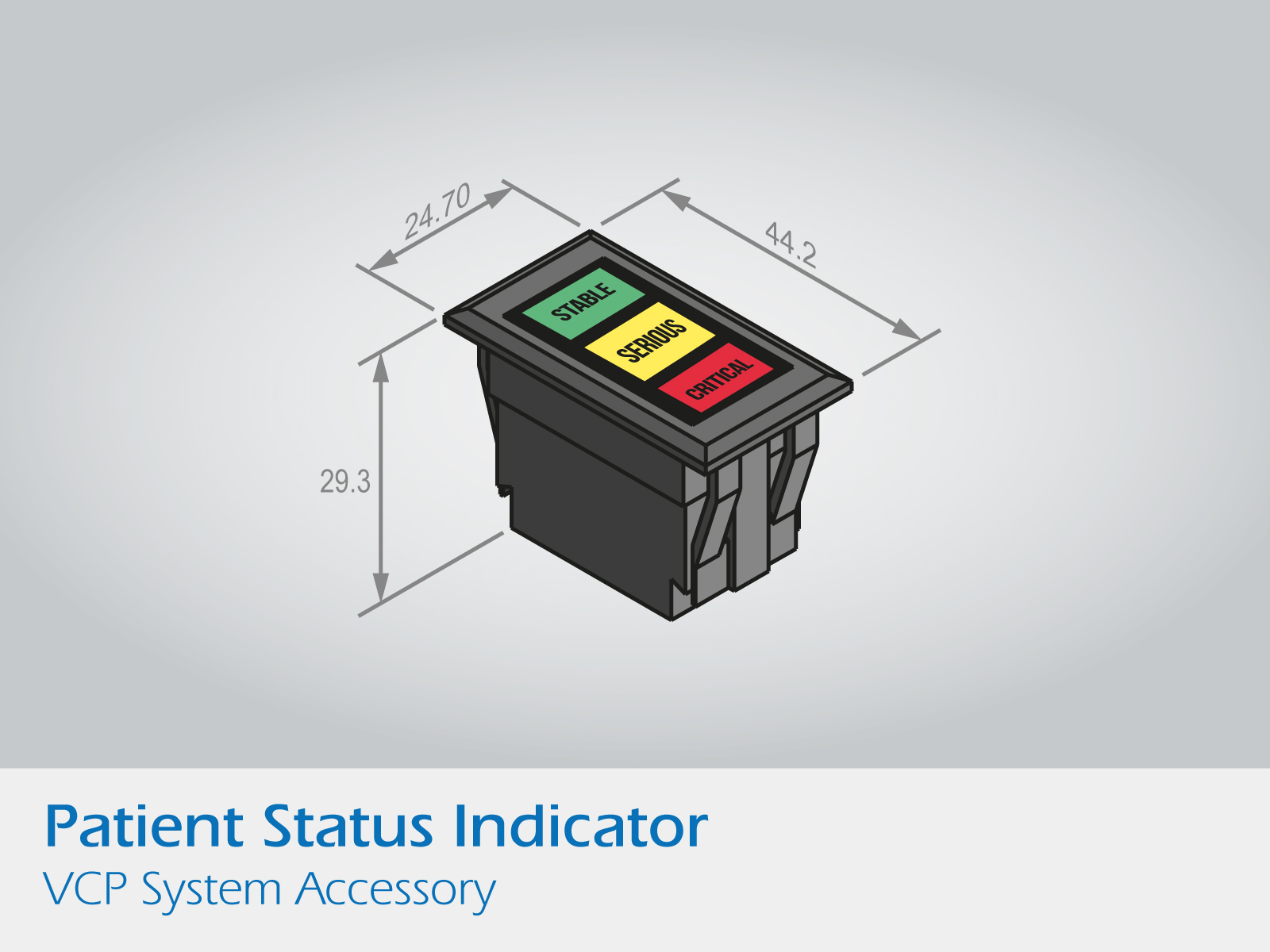

PATIENT STATUS INDICATOR - ACCESSORY

Patient health status indicator for ambulances

Reports to the driver the patient’s health status in real time. The patient’s status is defined in 3 levels: STABLE, SERIOUS and CRITICAL. When the paramedic updates the patient’s status on the touchscreen, the new status is illuminated on the indicator.

* This accessory is not necessary if the system includes a touchscreen module for the driver, as this function is integrated into the interface.

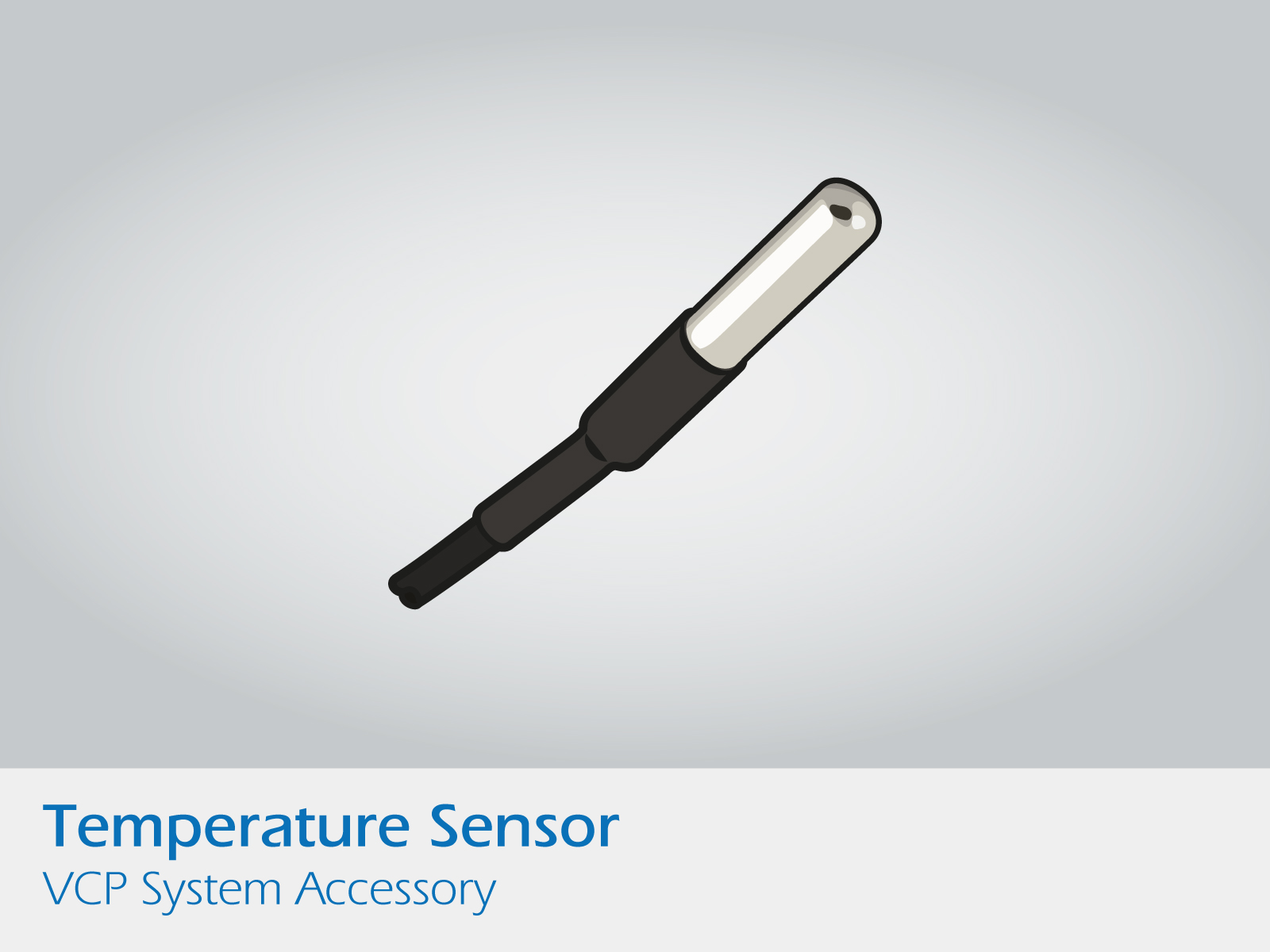

TEMPERATURE SENSOR - ACCESSORY

Accessory for vehicles that are required to maintain a controlled working temperature inside.
